Radon

Radon Occurrence

Throughout the entire Earth, the naturally occurring element uranium is found in at least trace amounts. This naturally occurring substance is naturally radioactive and with time, the uranium decays into several other elements (called "daughters"), one at a time. Each time a transformation into a new element takes place, the atom is said to undergo "decay". During each decay, energy is released from the atom. The released energy is collectively given the term "ionizing radiation" and the atom is said to exhibit "radioactivity".

Along this decay chain, one of the elements that is produced is radon. Radon is unique from the other uranium decay products because it is a gas and as a gas, it is capable of migrating from the location of the original uranium atom into the surrounding soil gas. Worldwide, an average of about two radon atoms are emitted from every square centimeter of soil everywhere on the Earth every second of every day¹.

Radon and Health

When radon decays, it releases a "large" atomic alpha particle and the atom is transmuted into polonium. An alpha particle is essentially an helium atom stripped of its electrons. It is at this point that the real hazards associated with radon are encountered. For it is not the radon which is responsible for the health problems, but rather the short lived radon daughters (SLRDs) and their decay products, such as the alpha particles. The radon may be thought of merely a source and a vehicle for the SLRDs.

There are several different kinds (isotopes) of naturally occurring radon. Typically, when we speak of radon, we are speaking of radon 222 which has a half life of 3.8 days. This means that left on its own, in an enclosed container, the half of the radon will be gone in four days, and in eight days, only 25% of the original will remain.

Once the radon atom decays, it subsequently undergoes four rapid decays starting with polonium 218 which decays into lead 214, which decays into bismuth 214, which decays into polonium 214. Each of these daughters has a half life of less than 30 minutes (the polonium 214 has a half life of only 0.00016 seconds). Furthermore, the daughters are electrically charged. The SLRDs are measured in units called Working Levels (WL). The significance of these units will be discussed later.

During each decay, at least one of three types of ionizing radiation are emitted by the SLRDs: alpha, beta and gamma. The alpha particle is easily stopped by a single piece of paper or layer of clothing. The fact that it is easily stopped speaks to the issue of it's "linear energy transfer" (or LET). Since the alpha particle is large and easily stopped, the alpha particle transfers virtually all of its energy to the material which has stopped the particle. Beta has less probability of being stopped and imparts less energy into the stopping material. The gamma radiation is similar to X-rays and has an even lower probability of being stopped.

Since the radon is airborne, these daughters have a high probability of being airborne. If the daughters are inside the lung when they decay, the lining of the lung wall becomes the stopping material. Since the alveolar cells of the lung wall do not have a significant protective coating, an alpha particle can collide with the live cell, imparting an enormous amount of energy to the cell, possibly disrupting the DNA within the cell. This is the interaction which is thought to initiate the cancers associated with the SLRDs.

When a daughter is airborne, it has an electrical charge associated with and it has a higher probability to adhere to other airborne particulates and dust. When the daughters adhere to airborne particulates, it is said to be "attached." An inhaled attached daughter has only about a 3% chance of adhering to the lung lining. An inhaled unattached daughter, on the other hand, has a 50% chance of striking and adhering to the lung wall¹; increasing the chances of a an alpha particle/cell collision. Ironically, where dust levels are high, the risks from elevated radon are lower than in dust free areas with the same radon level. It is for this reason, homebased air filters may remove the attached SLRD from the breathable air, but ironically increase the risk associated with newly introduced SLRDs (I know that sounds contradictory, but give it some thought).

In a similar scenario, when a SLRD becomes attached to a wall, table, chair or other non-respirable object, it is said to "plate-out". Plate-out reduces hazards associated with radon without reducing the radon itself. This phenomena is the basis of one of the lesser known "radon" reduction techniques.

Radon and Risk

How hazardous is the radon? This is a complicated question which is very hotly disputed by various groups of scientists. Elevated levels of radon (and thus the SLRDs) are unquestionably a significant health hazard, but how high is "elevated"? Further, is the total accumulative life-time dose or the dose rate more important? I believe that these questions currently remain unanswered.

In the EPA and National Research Council (NRC) risk estimates, the units of exposure are Working Level Months (WLM). One Working Level is defined as any combination of short lived daughters in one liter of air which will ultimately release 1.3E5 MeV (million electron volts) of alpha by decay through polonium 214. A somewhat more simple version is that a Working Level is a measurement of SLRDs which are in equilibrium with 100 pico Curies per litre of air (pCi/l); in this context, one pCi/l is not equal to one pCi/l in a house. Equilibrium is said to have been reached when the maximum concentration of SLRDs has been reached. The ratio of the activity of the SLRDs to the activity of the radon gas is called the Equilibration Ratio (ER). Equilibrium usually occurs in about three to four hours. One WLM is when an individual receives one WL in 170 hours (a miner's month).

The EPA guidelines were aimed primarily at homeowners, and therefore, a more simple version of WLs was needed to communicate radon concentrations, therefore, the EPA did exactly the opposite. The EPA evaluated actual ERs between radon gas and SLRDs. By measuring the radon gas (which is very difficult and expensive), one can derive an upper limit for the SLRDs. Typically, ERs range from 0.3 to 0.7 ². An ER of exactly 1.0 is never seen because: 1) radon daughters are removed from buildings at different rates; 2) some SLRDs will plate-out while the radon remains airborne; and 3) newly infiltrated radon has not yet decayed.

The EPA established an ER of 0.5 to represent what it felt would be a typical ER for a home and this became the basis upon which the EPA pCi/l was derived. Although this selection has been criticized by many scientists and in some journals such as the Journal of the American Industrial Hygiene Association, the ER of 0.5 is still used by the radon mitigation industry. Therefore, assuming an ER of 0.5, one WL is equal to about 200 pCi/l.

An unusually low ER (0.3) would indicate a particularly dusty area (such as would be found in a home by a dirt road, for example); a high ER (0.7) may indicate a particularly still area, an area filtered by a filtration system or particularly “dead” areas such as those rooms found in basements or storerooms.

In one study ³, which the USEPA relies heavily on, evidence involving miners indicated that at levels as low as 80 WLM, the risk of death from lung cancer was very high and the risk increased to 50% chance of death from lung cancer at even higher levels. In that study, the lowest measured exposure was 80 WLM. In fact, in that very important study, the EPA didn't actually measure a very large percentage of the exposed population to determine what their exposure was. In one report⁴, the EPA states (the emphasis is mine):

Exposure in the U.S. cohort is poorly known; cumulative WLM (CWLM) are calculated from measured radon levels for only 10.3 percent of the miners...and guesswork is used for about 53.6 percent of the miners.

Guesswork? Let’s look at that again….

Exposure in the U.S. cohort is poorly known; cumulative WLM (CWLM) are calculated from measured radon levels for only 10.3 percent of the miners...and guesswork is used for about 53.6 percent of the miners.

Guesswork.

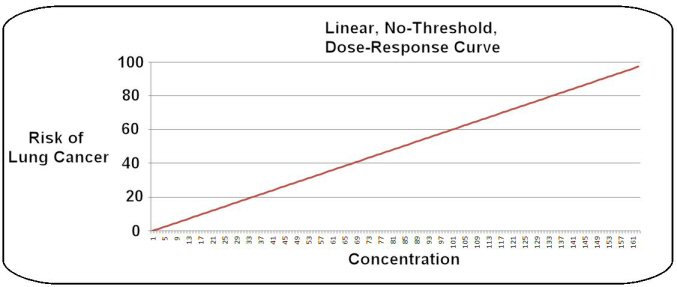

In the model used by the EPA, the relationship between the dose from radon and the risk of dying from cancer followed a linear relationship up to a certain level. At even higher levels of radon, (or more precisely SLRDs) the risk of death begins to actually decrease ⁴. The model⁶ was issued in 1988 by the National Research Council and is called the BEIR IV report. BEIR is an acronym for "Biological Effects of Ionizing Radiation".

The EPA study ignored the science behind the biological effects and used an unsupported assumption that the health effects from the radon could be extrapolated in a linear fashion from the lowest radon concentration in the study (2,720,000 pCi/l-hour) to those levels found in homes. This linear "dose-response" assumption was made even though there was considerable uncertainty for the validity of the extrapolation at lower levels of SLRDs.

The lowest radon concentration in the BEIR IV study (2,720,000 pCi/l-hour) was typically received by the miners over a five year period ⁷. Yet the EPA and NRC take this five year exposure and spread it out over the course of 70 years, and assume that an individual will spend 18 hours per day in their home, 365 days per year for 70 years. This equates to an accumulative radon concentration of about 6 pCi/l in the home. It is not known, at this time, if it is valid to assume that only the accumulative dose, rather than the dose rate is the sole factor for determining risk. In its model, the EPA, eliminated the "dose-rate-effectiveness factor" from the quality factor which is usually attributed for alpha particles. (I have no idea why).

Although it is a generally held industrial hygiene principal, that fractionation of the dose over a long period of time lessens the overall effect, this concept is not always accepted for carcinogens (tumour initiators), such as ionizing radiation. For carcinogens, fractionation of the dose may actually increase the overall risk ⁸.

The NRC understood the limitations of the study and concluded ⁹...

In summary, a number of sources of uncertainty may substantially affect the committee's risk projections; the magnitude of uncertainty associated with each of these sources cannot readily be quantified. Accordingly, the committee acknowledges that the total uncertainty in it's risk projections is large.

A later study ¹⁰ (referred to as the Cohen Study), which is one of the largest studies, incorporated about 33% of the counties in the U.S. and looked at the issue of the linear, no-threshold dose-risk relationship used by the EPA. In this study, a least squares linear regression of lung cancer rates vs. mean radon levels gave a negative correlation between death and exposure levels. In other words, the higher the radon level in the county, the lower the death rate from lung cancer was for the community. The result was not due to questionable interpretation of shaky statistics; each of the studies showed a negative correlation with slopes of not less than seven standard deviations (and sometimes greater than 10 standard deviations) greater than zero.

This study, known as an "ecological" epidemiological study, looks at relationships between exposure groups and mortality rates. Ecological epidemiological studies carry less weight than studies based on individuals where the actual exposures are known and the study cohort is compared to an unexposed group. In an ecological study, the person who dies may not have been the person who was exposed to the insult. Additionally, ecological studies tend to be more susceptible to confounders. Nevertheless, the author of the Cohen Study maintained that in a study on linear no-threshold relationships, this limitation is not considered to be applicable since the mortality rate depends directly on the average exposure.

In a personal communication (1993) with the author of the Cohen Study, Mr. Cohen indicated that he was not saying that the presence of radon was beneficial, but rather that the model used by the EPA and NRC to estimate risk had serious faults which should be considered.

Several other independent studies also looked at mortality rates vs. mean radon concentrations and have found similar effects. To my knowledge, five U.S. State sponsored projects have performed similar ecological epidemiological studies; four have concluded that low levels of radon, such as those found in the average home, are not harmful (show a negative correlation) and the sixth study indicated a very slight (less than one standard deviation) positive slope, indicating some risk at low levels.

In a US Government Publication ¹¹concerning radon, the following statement is made:

Currently there is very little information about...the health effects associated with exposures to radon at levels believed to be commonly encountered by the public. The only human data available for predicting the risks to the public are studies examining the health effects of exposure to radon and its progeny in underground miners. This information would be appropriate for predicting the risks to the public if everyone was a miner, everyone lived in mines, and a large fraction of the general population smoked cigarettes.

Clearly, then, in my opinion, the models used for the estimation of risk are inappropriate. The document then goes on to state:

Depending on the set of assumptions used, the estimated values for lung cancer rates from environmental exposure to radon currently range from quite small to as large as 25% of the total annual lung cancer deaths in the United States.

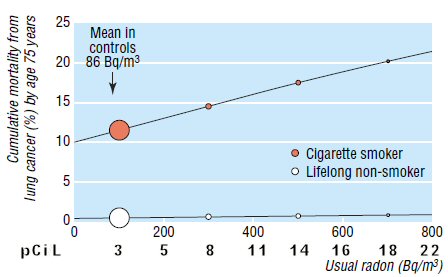

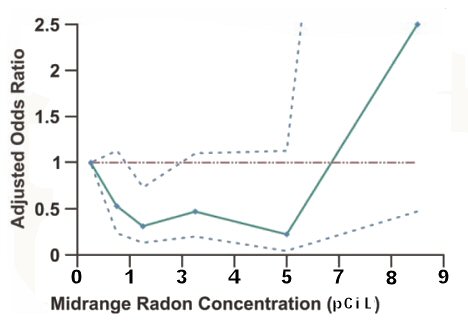

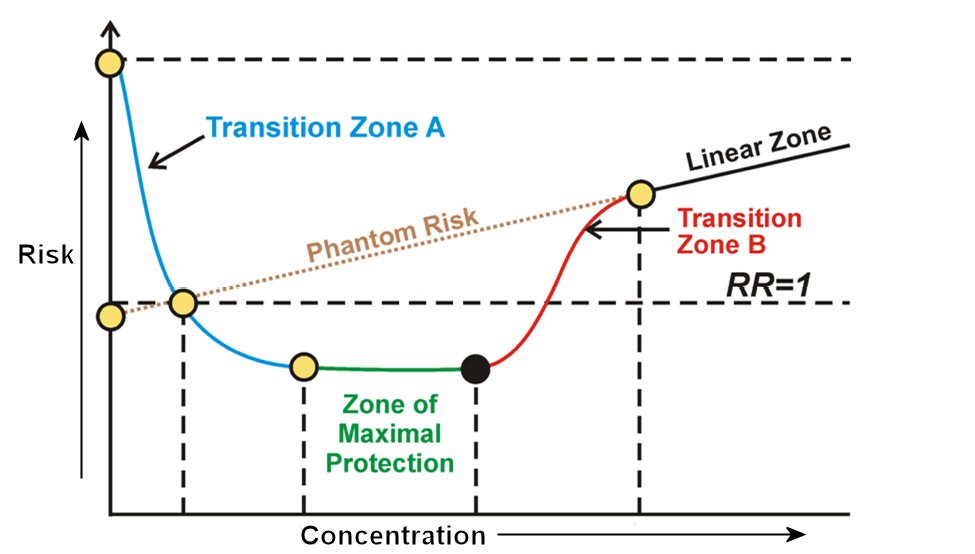

Ongoing studies that employ more realistic models indicate that the risk of death from radon is roughly equivalent to being one additional pound overweight for every pCi/l greater than 4 pCi/l. Furthermore, in modern science, it has been generally assumed that virtually all effects of ionizing radiation result in detrimental effects. However, over the past decades, reports in scientific literature seem to suggest that that low-dose ionizing radiation is not only a harmless agent but often has a beneficial or hormetic effect.

I believe that the issue of health effects associated with long term exposure to low levels of radon will probably remain shrouded in uncertainty for at least the next generation, until the measurements which we take today will be used to compare with the mortality rates of our generation. Until then, the question of cost of radon reduction, vs. the benefits will be a very difficult question to answer. The concept of "safety" is merely an attempt to achieve an acceptable level of risk; zero risk cannot be reached. Personal choices will mandate the level which is "safe" for that individual.

The same uncertainties plague chronic-exposure risk assessments for other forms of low level radiation; and the concept of ALARA (As Low As Reasonably Achievable) is used to control those forms of radiation. The definition of ALARA is found in the United States Code of Federal Regulations, ¹² and is essentially defined as follows:

A policy of reducing personal and environmental radiation exposures to the lowest level commensurate with sound economics, available technology, and good operating procedures.

Although in general, I believe that the concept of ALARA should be incorporated, particularly with regard to the protection of children, given that the levels of radon associated with most homes is virtually at the EPA threshold (which is not based on health effects, but rather based on technologically feasible reduction levels), I cannot provide much insight as to what would be "a reasonably safe level" based on economic and technological considerations.

EPA Guidelines and Regulations

When the EPA established its radon exposure levels, it actually was attempting to establish limits on the Working Level of the SLRDs. The "real" EPA guideline is 0.02 WL; assuming an ER of 0.5, this would equate to 4 pCi/l of radon. Certainly an ER of 0.5 may not be appropriate for all buildings.

As mentioned above, the EPA selection of the 0.02 WL limit was not based on health effects or other risk assessment models but rather on a general agreement that 0.02 WL was the lowest technically feasible level of reduction.

The EPA guideline is not law in the U.S., it pertains only to residential homes, and does not carry force of law (although it is a de facto standard upon which litigation may be supported). It is merely one group’s recommended level of reduction. The EPA does not have mandatory limits for radon for other types of buildings and does not prohibit levels of radon in excess of the 4 pCi/l threshold.

Any individual wishing to retain their EPA accreditation in the Radon Contractor Proficiency Program must comply with the EPA's politically derived position on radon (facts and good science notwithstanding), or face forced removal from the program by the EPA. Providing factual discussions on risk (such as this one) are not viewed by the EPA in a favourable light, and indeed, although I obtained a perfect score of 100% on my last sitting of the EPA exam, I was a source of consternation for the instructors when I would bring up facts that the EPA would rather kept quiet. How passionate can the EPA get? During one international scientific gathering, I saw a violent shouting match initiated by a U.S. EPA representative when a presenting scientist discussed his views on radon and risk and those views were not shared by the EPA… “We didn’t authorize you to say that!!” Shouted the EPA representative.

Radon Entry into Buildings

Most soil gas reaching the surface is quickly diluted by the surrounding air. In the event that a structure is built in or on top of the soil, the dilution of the radon does not take place as quickly, and the radon in the structure accumulates.

Several factors govern the extent of how much radon will enter a building. The single most important factor is the local geology. The immediate precursor to most radon gas is radium. (A very small contributor to the radon concentration is radon 226, also called thoron. The contribution of thoron is generally insignificant and will be ignored).

The existence of even a small deposit of radium under a building will greatly influence the concentration of radon gas within the building. Micro geological formations such as local disturbances during construction, micro faults and rock out-croppings can significantly alter the radon concentration at the surface. An example of the extreme variability of radon was seen in one study ¹³ where one soil gas sample contained 250 pCi/l and a second sample taken at 10 meters distance contained 86,000 pCi/l. "Normal" indoor levels in the U.S ¹⁴ are typically about 1 pCi/l or 10 times greater than the outdoor concentrations of about 0.15 pCi/l.

When a building is constructed, pressure differentials between the interior of the building and the exterior of the building are inadvertently created, especially when there is a significant temperature difference between the interior of the building and the outdoors. This pressure differential, delta P (DP) is mostly due to a phenomenon known as the "Stack Effect". The building mimics an exhaust stack and is under negative pressure with regard to the surrounding environment including the atmosphere and the soil gas below the slab. Typically, the DP is greater toward the bottom portion of the building and is equalized near the top of the building.

To satisfy the negative pressure in the building, the net air movement toward the bottom of the building is from the outside of the building to the inside of the building. It has been estimated ¹⁴that as much as 20% of this infiltration comes from below ground level. This 20% infiltration accounts for between 80% and 90% of the total radon which enters the building.

In the early days of radon investigations, it was assumed that drafty houses would have less radon than "tight" houses. Additionally, it was assumed that houses with high exchange rates would have lower radon concentrations than houses with few air changes per hour. Contrary to expectations, studies performed thus far show that there is no correlation between "tightness" of a building and the radon concentration ¹⁵,¹⁶. Very low radon concentrations are commonly seen in very tight buildings and high levels are often seen in the leakiest of houses.

Therefore, the second most important factor in radon entry into buildings is the DP. Several studies have shown that a very strong correlation between DP and radon concentration exists. All things being equal, the greater the pressure differential, the higher the radon level.

Since most commercial buildings fitted with industrial heating, ventilation and air conditioning (HVAC) systems are designed to keep the structure at positive pressure, excessive radon levels in commercial buildings in the U.S. are rare even in "high radon" areas. Typically, the most successful radon reduction techniques are those which address the driving forces of the pressure differential.

Weather can also effect the DP. Generally speaking, when the outside air is cold and the interior of the building is warm, the DP is greater. When the wind blows, the DP is greater. Additionally, when the water table rises, such as following a recent rain, the soil gas pressure rises, increasing the DP. Other meteorological factors such as snow cover can also effect the radon concentrations in a building by creating a "cap" under which the radon can accumulate.

In the U.S., Britain and Sweden, the majority of the radon which enters a building is from the presence of radon in the soil gas. However, there are two other significant sources of radon- well water and building materials. For structures, which are serviced by well water, a significant contribution of indoor radon can be from the radon in well water. Worldwide 2, the average concentration of radon in surface water is about 10 pCi/l. In the U.S., the average private well-water contains about 750 pCi/l. Levels exceeding 20,000 pCi/l are not uncommon and this author has seen references to levels exceeding 1.6 million pCi/l (0.16 µCi/l).

Due to radon's very high Henry's Law Constant, radon will quickly evolve from water when it is aspirated or exposed to the air. For this reason, processed city water is rarely seen as a contributing factor to the overall radon concentration in a building, since essentially all the radon has left the water in the predistribution processing. However, in well water, the water is not subject to the chlorination and aspiration processes and can be a significant contributor to the building's burden of radon. It is commonly quoted that a water radon concentration of between 6,000 and 10,000 pCi/l will increase the airborne radon concentration in a building by 1 pCi/l.

In a few isolated cases, decorative stone and other building materials have also been identified as being the single largest significant contributors to indoor radon concentrations. The building construction material called "granite" is usually a similar material called granodiorite. The granodiorite has been shown in some cases to be the sole source of radon in a structure.

ANALYSIS TECHNIQUES

Most of the radon measurement techniques do not measure radon. Each of the techniques described below, measure an aspect of radon, but none of the techniques measure radon directly.

Charcoal Canisters

The charcoal canister (CC) method of radon concentration estimation is the most widely used method of screening. Like virtually all other "radon measurement devices" the CC method does not actually measure radon but rather it measures the gamma radiation associated with the SLRDs. Several assumptions as to relative humidity, equilibration ratio, transient peaks and others are then incorporated in the final analysis.

There are several advantages of using the CC method. They are relatively cheap, usually costing about $25.00 to $40.00 The placement of charcoal canisters need no special training. The analytical precision associated with the CC is very good. The charcoal canisters are inconspicuous, which allows for undisturbed sampling; and they are fast; sample periods can be a little as three days and results can be obtained within three or four hours.

There are some disadvantages associated with the CC as well. The uncertainty for attempting to extrapolate the yearly radon concentration from a five to seven day sample is huge: about +/- 90% (at the 90% confidence level) ¹⁷. For this reason, I believe that a single CC reading should not be used to estimate the annual radon exposure in a house. Also, charcoal canisters are susceptible to humidity changes. Often, the analyzing laboratory will assume a standard percent relative humidity and use that in their calculations.

The CCs are erroneously thought to integrate the radon concentration over the sample period, but this is not quite true. The CC will bias the results to reflect the last 10 to 12 hours of sample time. Therefore, if during the last 12 hours of sampling time a rain storm has occurred, or the outside temperature has dropped or the wind was particularly strong, then it is likely that the results will be biased high. If on the other hand, the day was calm, unusually dry and warm, the results may be biased low.

Alpha-Track Monitors

Alpha-track monitors are typically small cylindrical containers (about 5 cm high) which contain a piece of plastic film. The opening to the cylinder is often covered with a dust cover. During the decay of the radon and its SLRDs, the alpha radiation strikes the film and creates microscopic areas of damage which mark the path of the alpha particle. These paths are referred to as "alpha-tracks". After a period of not less than one month (shorter if the radon is particularly high), the film is removed and etched with a solvent to enhance the tracks and the tracks are optically counted under a microscope (there are some automated counting devises). The number of alpha tracks is a function of the radon concentration.

The advantages for alpha-track include simplicity, cost and inconspicuosity. They are slightly more expensive than the charcoal canisters. The alpha-tracks are as easy to use as charcoal canisters and are small and unobtrusive. They are not effected by either temperature or humidity.

Alpha-tracks can be used for long periods of time, integrating the exposure over that time. Typically, they are set for a period of three months to one year.

One disadvantage of the alpha-track method is the fact that they are slow. Generally, they should be exposed for periods not less than one month. Also, the analysis is more subjective than that of charcoal canisters. A +/- 50% uncertainty must be applied to a three month alpha-track measurement (at the 90% confidence level) when extrapolating the mean annual concentration.

Some studies ¹⁸ have shown that in using the alpha-track principal some materials may be capable of "remembering" their alpha exposure over the course of several decades. One method uses the glass found in windows, picture frames, and even old spectacles from a building's occupant. A long term decay product of radon is lead-210 which in turn decays to polonium 210. The polonium 210 becomes embedded in the glass via recoil processes and can be analyzed using alpha spectroscopy. The method provides an excellent opportunity to evaluate what the historical radon concentration of the building has been.

Continuous Working Level Meters (CWLMs)

In a CWLM, air is drawn through a filter which traps and retains the SLRDs but allows the radon to pass. The alpha from the SLRDs is counted in a preselected energy window (typically 2 to 8 MeV) over a specified period of time. The counts are automatically converted to WL by means of a calibration factor.

The advantages of the method include the ability to determine the actual extent of the true hazard; i.e. the SLRDs. The method can evaluate the efficacy of mitigation techniques which aim at reducing the SLRDs but do not address radon gas. Sources of radon such as showers, floor drains, sumps et cetera can be determined using CWLM. The results are relatively quick, and are obtained on-site without need for laboratory analysis allowing for real-time monitoring of SLRDs.

Some of the disadvantages include the high initial cost of the instrument or rental fees. The instruments are not simple black-boxes and require the use of a trained operator and the instruments need to be site calibrated.

MITIGATION TECHNIQUES

Mitigation techniques are divided mostly into three groups: 1) those that address reduction of radon gas; 2) those that address the reduction of SLRDs; and 3) those that address the DP.

The average ¹⁹ radon gas reduction, as of 1989, from mitigation techniques is 70%. However, it is more practical to speak of absolute reductions rather than per cent reductions. For example, it is easy to get a 98% reduction when reducing the radon in a building from 500 pCi/l to 10 pCi/l but it is extremely difficult to get a 20% reduction when attempting to reduce the radon from 5 pCi/l to 4 pCi/l.

The life time effectiveness of the mitigation techniques is still under review.

Ventilation

Ventilation as a radon reduction technique usually addresses reduction of the radon gas rather than the DP, because usually when a contractor is referring to ventilation, they are referring to ventilation of a crawl space, not a living area. When this is the case, the radon contractor usually refers to "isolation and ventilation". The Building Official's Code Agency recommends 1 square foot (865 cm²) of passive vent per every 150 square feet (14 m²) of floor space with vents within 6 feet (1.8 m) of each corner.

Passive ventilation of a working or living area is typically considered to be an inappropriate technique for buildings in temperate climates because of the difficulty of maintaining comfort zone temperatures during the winter months. An additional problem with passive ventilation is that one does not have good control of the ventilation. A window may be open one minute until someone else feels cold and closes the window.

Additionally, it has been shown ²⁰ that if other than the very lowest level of the building is passively ventilated (say by opening a window) then winds blowing through the building can create a venturi effect and actually increase the radon concentration. As discussed earlier, there is no correlation between air changes per hour and radon concentration, but there is a strong correlation between DP and radon concentration.

Passive ventilation of some heating cellars where the pipes are insulated and the room contains a sump may be a viable option. Ventilation systems designed for radon reduction are often fitted with heat recovery devices to help reduce the loss of heated air to the outside. Passive ventilation is obviously cheap, and easy but it has met with rather checkered results. It is most appropriate for small buildings with very low levels of radon.

Active ventilation, on the other hand, is usually in the form of HVAC systems and are not specifically designed as radon reduction systems. Nonetheless, because the HVAC systems are designed to maintain the building at slightly positive pressure, they address the DP issue. By maintaining a slight positive pressure, HVAC systems over come the negative pressures of the stack effect and prevent radon from entering a building. The system should be capable of maintaining a positive pressure of at least 0.02 inches of water column (5 Pa) above the ambient pressure.

Filtration Devices

Filtration devices address the SLRDs without addressing the radon problem or the DP problem. Filtration devices circulate the room air through a filter which scrubs out the SLRDs.

On the surface, this type of technique appears to be an excellent solution, however, the filters will also remove the airborne particulates (dust, pollen, etc.) thus increasing the ratio of unattached daughters and actually increasing the bronchial radiological dose²¹. As mentioned earlier, the unattached daughters have a much higher probability of adhering to the lining of the lung wall. Therefore, the sole use of filtration devices is not considered to be an appropriate mitigation technique.

Air Movement Device: Ceiling Fans

This type of a system addresses neither the DP problem nor the radon entry problem, but rather the SLRDs themselves.

Unlike a filtration device, a ceiling fan does not remove the desirable airborne particulates but rather encourages the plat-out of the SLRDs. Since this type of technique can be installed by the home owner (as a rather attractive addition to a living room or dining room), radon contractors do not have an incentive to disclose this technique to the general public.

Remarkably good reductions (as high as 95%) of SLRDs have been achieved ²² by simply placing a "Casablanca" type ceiling fan in a room. The fan should be capable of complete air movement within the room. Where the desired reduction is on the order of 50%, the ceiling fan alone can correct most of the problems.

Where a reduction of 80% or better is needed, the a ceiling fan in conjunction with a positive-ion generator may correct the problem. The ceiling fan/positive-ion generator combination has been tested in the U.S., Denmark, Finland and Canada ²² with similarly excellent results. The reduction in SLRDs has been consistently as high as 95% and where bronchial doses have been measured ²², the reduction in bronchial dose has been as high as 87%.

The positive ion generator should not be confused with an electrostatic precipitator (ESP). Using an ESP could result in the removal of airborne particulates and an increase in unattached daughters. Also, negative ion generators have been shown to be less effective than the positive ion generators ²². While the fan speed is not critical, the fan should be placed in the center of the room and be large enough to effectively move the air in the room.

A disadvantage to this type of reduction technique is that post-mitigation monitoring would have to involve a continuous working level monitor, instead of the charcoal canisters. Nonetheless, the savings achieved by the technique over some other mitigation methods would nearly off-set the cost of purchasing such an instrument (not to mention renting one).

Another disadvantage to this technique is that it can be readily turned off if not properly installed. The fan and the positive ion generator should be wired such that it cannot be deactivated by unauthorized personnel. The system should be labeled as a "radon reduction" system and allowed to run continuously.

Sealing Floor and Foundation Wall Cracks

Since some 90% of the radon ²³ comes from sub-slab infiltration, one of the earliest mitigation techniques involved simply sealing floor and foundation wall cracks to prevent entry. The advantages of this method are its relative ease and low cost.

The disadvantages of the technique include its poor record of success, its limitation to only unfinished basements and the fact that it does not address DP, or SLRDs.

It has been shown that where high levels of radon are present, sealing alone is a very poor mitigation technique. However, sealing of floor and foundation wall cracks is often a necessary supplement to sub-slab depressurization (this will be discussed below).

When such sealing is required, the crack needs to be properly routed out first and then sealed back in with an appropriate material, such as backer-rod and foam.

Where high levels of radon are present, I would not recommend this technique as a sole corrective action.

Positive Pressure

In some mitigation cases, the technique was to positively pressurize the basement. This technique has a poor record of success because it involves upsetting the normal use of the basement. It has a potential ability to blow out pilot lights and can be noisy. It is no longer generally considered to be an acceptable mitigation technique.

Sub-slab Depressurization (SSD)

Approximately 90% of the reduction techniques used in the U.S. today are SSD ²⁴.

The idea of SSD is to address the driving force of the radon entry; the DP between the slab and soil gas. Instead of increasing the pressures within the building, SSD reduces the soil gas pressure below the slab. This author has measured in-house/sub-slab pressure differentials of as high as 89 Pa.

The SSD technique involves penetrating the slab with a 7cm to 20cm inside diameter PVC pipe and running the pipe up through the structure and exhausting to above the roof line. A centrifugal fan capable of developing high static pressure is mounted at the exhaust (outside the shell of the structure) to depressurize the slab. The fan should be capable of maintaining a pressure of at least 5Pa below the highest DP recorded or expected.

In some cases, ²⁵ a passive turbine has been used with encouraging results. The driving force for the depressurization is the stack effect and a wind driven turbine at the exhaust.

SSD has a proven track record of achieving 80% to 90% reduction in radon gas levels in favorable structures. SSD works best when the soil type is a sand or a loam. Additionally, the slab should be in good condition; slab cracks and expansion joints will limit the extent of the pressure field. If the slab is damaged or the soil has a high clay content, then SSD can still be used by inserting more and more collection pipes in the slab to extend the pressure field.

Prior to SSD, soil communication tests should be performed. Pilot holes are drilled into the slab and a vacuum cleaner is used to create a negative pressure field below grade. The DP is measured at each of the pilot holes. If the DP at each of the holes is acceptable (5 Pa or greater) then only one hole is needed. If the DP at any one of the pilot holes is less than 5 Pa, then that hole should be enlarged and incorporated as a collection point. Typically, one collection point is needed for every 65 m².

SSD works well for recessed floating slabs, slab-on-grade and floating slab-on-grade structures.

The are several important variations on the SSD theme. The first is perimeter drain depressurization whereby the pressure field is created using the existing exterior perimeter footing drain.

Block wall depressurization is used when the foundation wall consists of hollow block construction on a poured concrete footer. The foundation wall is penetrated with PVC piping and suction is applied to the wall. Prior to block wall depressurization, a block wall communication test should be performed to ensure uniformity in the depressurization. The block wall communication test is similar to the soil communication test. Doors, fire walls and other anomalies will disrupt the pressure field within the wall and require additional collection points. The block wall may be depressurized from the interior of the building or the exterior of the building.

In addition to the block wall depressurization technique, the same concept may be used for stem wall depressurization. Baseboard depressurization may be appropriate where there is a french drain present. Sumps may be used to depressurize the sub-slab soil.

Another important variation is the membrane suction technique used in crawl spaces. Since the earthen floor in the crawl space is incapable of allowing for an extended pressure field to develop, an impermeable membrane is placed over the entire floor of the crawl space. In some studies and case histories, the membrane is anchored to the floor using furring strips, and in other cases, the membrane is simply allowed to rest on the earthen floor.

Once the membrane is in place, a suction point is cut into the membrane roughly in the central portion and the soil gas is evacuated in the normal fashion.

One of the disadvantages of the SSD type systems is the cost. The initial cost of the installation is higher than most other techniques. The operating costs and the maintenance costs are also higher. The system can become noisy, prompting complaints from the building occupants and even prompting the occupants to deactivate the system.

The radon levels at the exhaust can be quite high and care must be taken to ensure that the radon is not reintrained back into the building shell.

Some contractors have experienced water vapor build-up from improperly installed systems. As the water vapor is extracted from the soil gas beneath the slab, it can condense within the pipes of the system. When this happens, the fan may be incapable of overcoming the back pressure and the pressure field below grade is disrupted. In some cases, the water vapor has condensed in the fan housing causing fan failure. The system must be designed to ensure that water build-up can safety be drained back into the slab, or to the out-of-doors.

The systems need to be installed with elaborate control panels which indicate the total pressure on both sides of the fan. Alarms are recommended to alert the building occupant in the event of fan failure, unacceptably high static pressure in the up-stream side of the fan or other problems which may develop.

If the SSD type systems are installed improperly, they can greatly increase the overall radon concentration in the building. Common faults include:

1) Placing the fan in the shell of the structure; if the fan leaks the radon is exhausted into the building.

2) Placing the fan in such a position that the radon is pushed along the exhaust pipe rather than pulled through the exhaust pipe. That is to say, the exhaust is under positive pressure with regard to the ambient pressure of the structure, if the pipe has a leak, the radon will enter the building.

3) Placing the exhaust too close to the plane of neutral pressure. During the stack effect, the lower portion of the building is under greater negative pressure than the top of the building; at a certain point, the pressure within the shell of the structure will equal the pressure outside and the DP will be zero. This point is called the plane of neutral pressure and is typically located 5cm to 8cm below the top most ceiling in the structure. If the exhaust of the SSD system is located at or below the plane of neutral pressure, the radon can be reintrained into the building.

Furthermore, improperly installed systems can result in exposing passers-by to the exhausting radon. The following criteria should be met:

1) The discharge point must be at least 3.5 meters above ground level.

2) The discharge point must be at least 3.5 meters (line-of-site) from any door, window or other structure openings that are less than 0.75m below the discharge point.

3) The discharge point must be at least 3.5 meters away from any private or public access.

4) The discharge point must be at least 3.5 meters away from any opening into an adjacent building.

The SSD systems have also been associated with back drafting problems whereby the exhaust from other sources of combustion (fireplaces, gas fired heaters and water heaters, etc.) within the building are disrupted. Therefore, following the installation of any depressurization system a test must be performed on any building which contains combustion appliances.

Caoimhín P. Connell

References:

1 Cohen, Bernard, D.Sc. "Radon, A Homeowner's Guide to Detection and Control" Pub. Consumer's Union, New York 1987, ISBN 0-89043-227-9

2United States Environmental Protection Agency, Office of Radiation Programs, "Radon Technology for Mitigators" 1989.

3 National Research Council, "Health Risks of Radon and Other Internally Deposited Alpha Emitters, BEIR IV", National Academy Press, Washington, DC., 1988

4 Risk Assessment Methodology, Environmental Impact Statement, NESHAPS for Radionuclides, Background Information Document- Volume 1. EPA/520/1-89-005, September, 1989

5 Guimond, Richard J., Director, Office of Radiation Programs, USEPA. In a letter to the editor of Science, Volume 250, Number 4979, October 16, 1990

6 National Research Council, "Health Risks of Radon and Other Internally Deposited Alpha Emitters, BEIR IV", National Academy Press, Washington, DC., 1988

7 Cohen, Bernard, D.Sc. "Radon, A Homeowner's Guide to Detection and Control" Pub. Consumer's Union, New York 1987, ISBN 0-89043-227-9

8 Casarett and Doull's Toxicology: The Basic Science of Poisons, Fourth Edition, Edited by Amdur, Mary O., PhD, Doull, John PhD, MD, Klaassen, Curtis D. PhD.

9 U.S. Department of Energy "Radon- Radon Research Program, FY 1989, DOE/ER-448P., March 1990

10Cohen, Bernard, L., D.Sc. "Correlation Between Mean Radon Levels And Lung Cancer Rates in U.S. Counties: A Test of the Linear-No Threshold Theory. Given at the 1988 USEPA Symposium on Radon and Radon Reduction Technology, Denver, Colorado

11 U.S. Department of Energy "Radon- Radon Research Program, FY 1989, DOE/ER-448P., March 1990

12Title 10 Code of Federal Regulations §20.1003

12 Michæls, L., et al, "Development and Demonstration of Indoor Radon Reduction Measures for 10 Homes in Clinton New Jersey" 1986

13 United States Environmental Protection Agency, Office of Radiation Programs, "Radon Technology for Mitigators" 1989.

14 Hubbard L. et al, "Radon Entry into Detached Dwellings: House Dynamics and Mitigation Techniques", Radiation Protection Dosimetry, 1987

15 Harris, J. "Radon and Formaldehyde Concentrations as a Function of Ventilation Rates in Residential Buildings in the Northwest" Proceedings of the 1987 APCA Annual Meeting.

16 United States Environmental Protection Agency, Office of Radiation Programs, "Radon Technology for Mitigators" 1989.

17 Mose, Douglas, G. et al "Realistic Uncertainties for Charcoal and Alpha-Track Monitors" Given at the 1988 USEPA Symposium on Radon and Radon Reduction Technology, Denver, Colorado

18Samuelsson, Christer. Department of Radiation Physics, Lund University Hospital, Lund Sweden "Glass as a Retrospective Radon Detector" Given at the 1988 USEPA Symposium on Radon and Radon Reduction Technology, Denver, Colorado

19 United States Environmental Protection Agency, Office of Radiation Programs, "Radon Technology for Mitigators" 1989.

20 Tappan, J. Tell, "Passive Radon Reduction Techniques for Existing and New Structures" Given at the 1988 USEPA Symposium on Radon and Radon Reduction Technology, Denver, Colorado

21Jonassen, Niels and Jensen, Bent Laboratory of Applied Physics, Technical University of Denmark "Removal of Radon Daughters by Filtration and Electrical Plateout"

22 Moeller, Dade, W. and Rudnick, Stephen N., Harvard School of Public Health, Boston Mass and Maher, Edward, F. Occupational and Environmental Health Laboratory, Brooks Air Force Base, Texas "Application of Air Cleaning Methods for the Removal of Radon Decay Products.

23 United States Environmental Protection Agency, Office of Radiation Programs, "Radon Technology for Mitigators" 1989.

24 Personal conversation between the author and Dr. Milton Lammering, Region VIII EPA, Radiation and Air Programs Branch, Denver, Colorado, 1994.

25 Tappan, J. Tell, "Passive Radon Reduction Techniques for Existing and New Structures" Given at the 1988 USEPA Symposium on Radon and Radon Reduction Technology, Denver, Colorado
